¶ Report Overview
- Reporting is something that is being generated for the purpose of investigation and out come of some thing that was carried our.
- As such in MHNG the reports are beign generated for the purpose to make the system user to know about the output of the investment he or she has made to the system.
- Currently user shall be able to generate 2 types of reports
- Log Report
- Summary Report
- Report can be generate using different filter criteria as below
- Channel type - SMS, Viber and WhatsApp
- Message Typr - Promotional and Transactional
- Based on date range - From and To
- Based on user accounts
- Based on campaign - Generated based on the selected user accounts
- Search by mobile nuumber
- Sender ID
- Message status
- Here when generating a report and if it is taking more than 30 seconds to download the user will be redirected to see a messge that the report generation is in progress it will take small time and the user will get notificed once the report generation is completed.
- A quick notification will be sent to the user once the report is generated to make him or her to download.

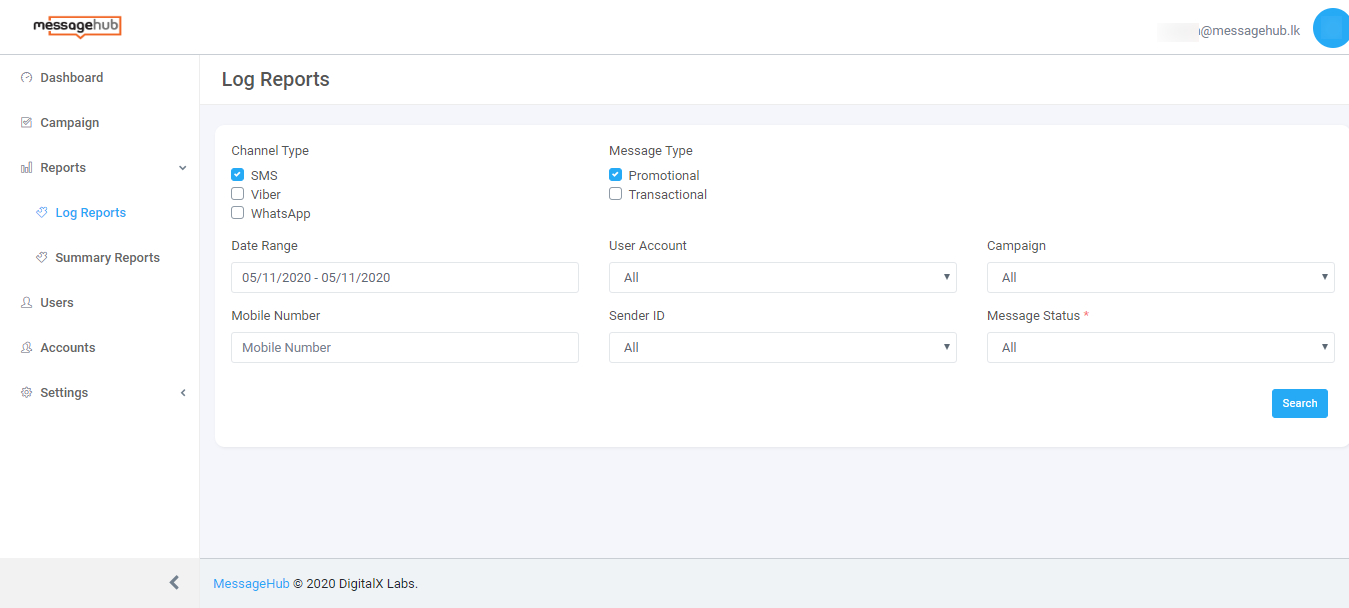

¶ Log Report
|
Parameter |
Field type |
Validation |
Usage |
| Channel Type | Checkbox | Default = SMS, (Viber, Whatsapp) | The user is able to select a channel type |
| Message Type | Checkbox | Default = Promotional, (Transactional) | The user is able to select a Message type |
| Data Range | Calander | Default = Current Date | The user is able to select the date range |
| User Account | Dropdown | Default = All, (List of user accounts) | The user is able to select a user account |
| Campaign | Dropdown | Default = All, (List of Campaign name) | The user is able to select a campaign |
| Sender ID | Dropdown | Default = All, (List of sender IDs) | The user is able to select a sender ID |
| Mobile Number | Textbox | Mandatory, Integer | The user is able to add the mobile number |
| Message Status | Dropdown | Default = All, (List of sender IDs) | The user is able to select a sender ID |

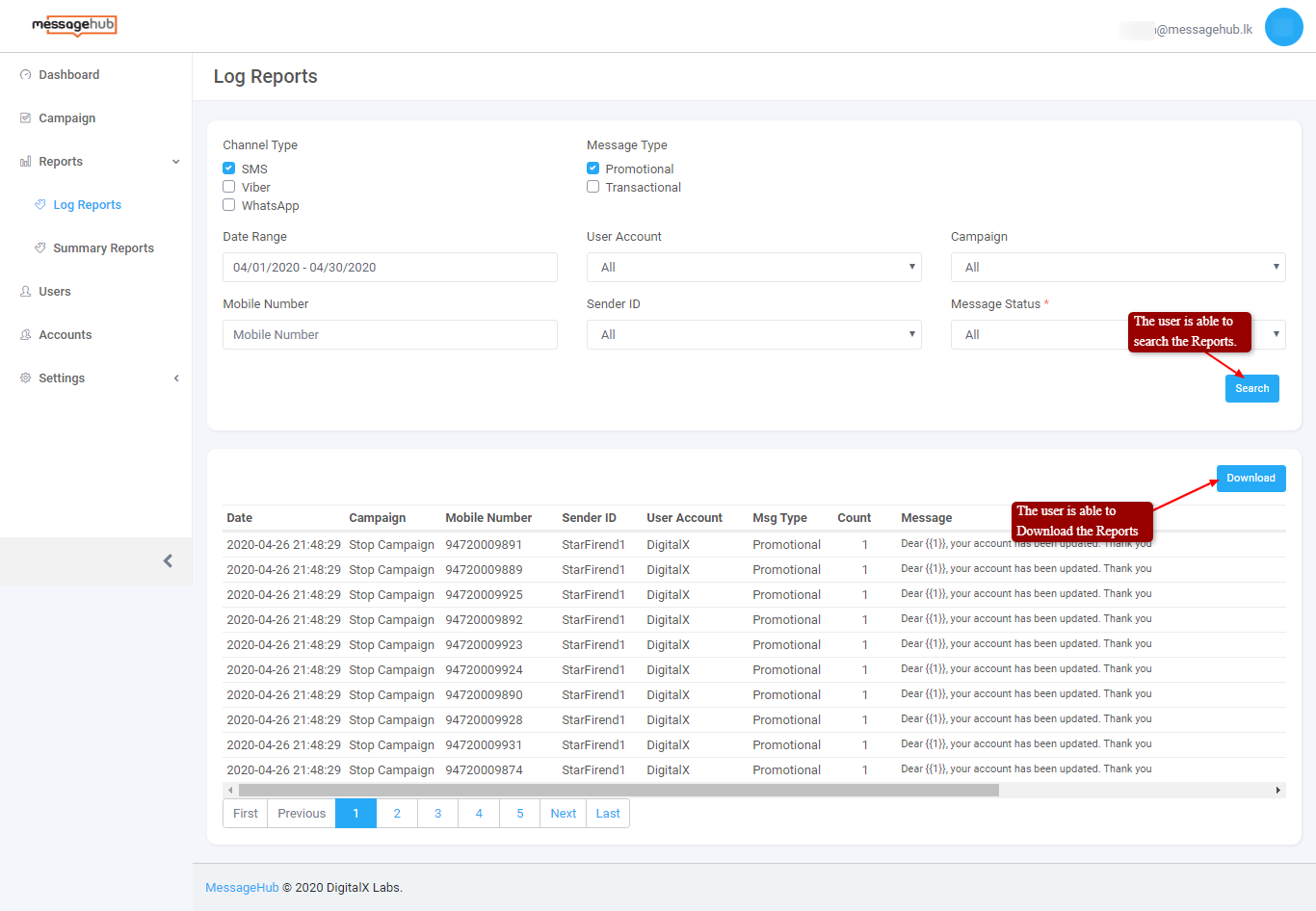

- the user is able to view the below information after filtering
- Date
- Campaign
- Mobile Number
- Sender ID
- User Account
- Message Type
- Count
- Message
- Channel
- Message Status
- Delivery Status
- Reason
- The user is able to download the Log Report

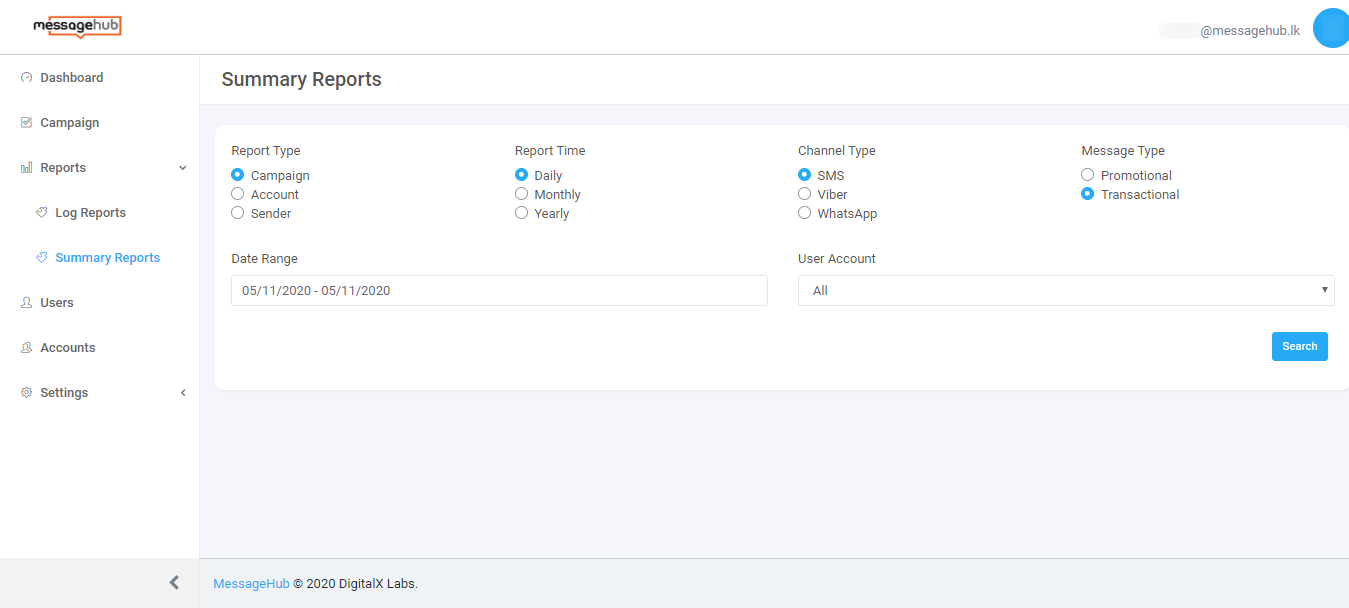

¶ Summary Report
|
Parameter |
Field type |
Validation |
Usage |
| Report Type | Radio Button | Default = Campaign, (Account, Sender) | The user is able to select a Report type |
| Report Time | Radio Button | Default = Daily, (Monthly, Yearly) | The user is able to select the Report Time |
| Data Range | Calander | Default = Current Date | The user is able to select the date range |
| Channel Type | Radio Button | Default = SMS, (Viber, Whatsapp) | The user is able to select a Channel Type |
| Message Type | Radio Button | Default = Transactional, (Promotional) | The user is able to select a Message Type |
| User Account | Dropdown | Default = All, (List of User Accounts) | The user is able to select a User Account |

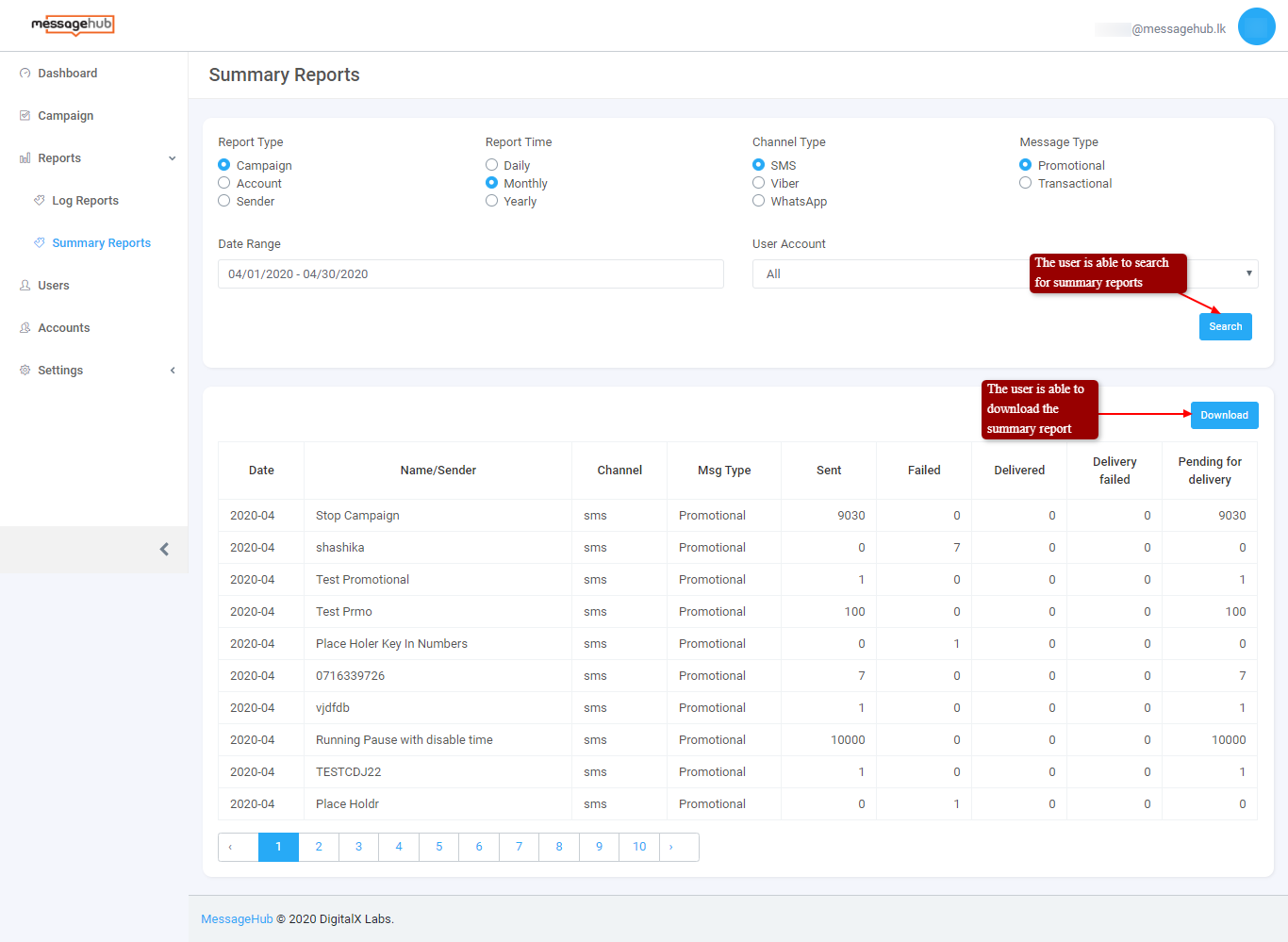

- the user is able to view the below information after filtering
- Date
- Name/Sender
- Channel
- Message Type
- Sent
- Failed
- Delivered
- Delivery Failed
- Pending for Delivery
- The user is able to download the Log Report
